Humidity Chamber

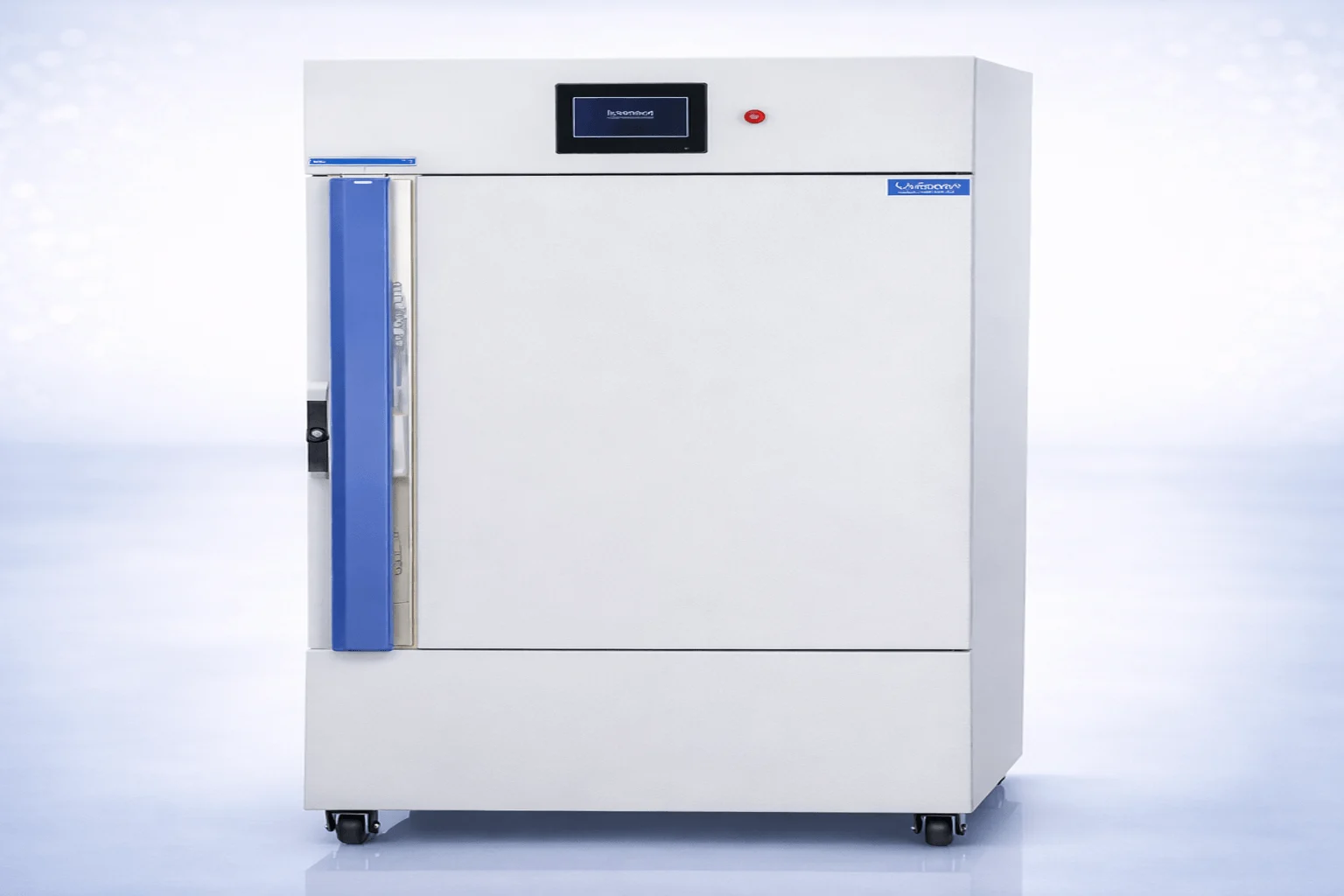

Humidity Chamber

The Humidity Chamber is a precision laboratory equipment designed to create and maintain controlled temperature and humidity conditions for testing and research applications. It is widely used in pharmaceutical, environmental, biological, and industrial laboratories for stability studies, material testing, and quality control.

This chamber provides an adjustable temperature range typically from ambient +5°C to 60°C along with relative humidity control from 40% to 95% RH, ensuring accurate and stable environmental conditions. It is equipped with a microprocessor-based digital controller with LED/LCD display, allowing precise monitoring and control of both temperature and humidity parameters.

Constructed with a double-walled structure featuring SS 304 stainless steel inner chamber and powder-coated exterior, the unit ensures durability, corrosion resistance, and efficient insulation. The chamber includes a humidity generation system with a water reservoir and sensor-based control for maintaining consistent humidity levels.

The Humidity Chambers are designed to create highly stable temperature and humidity environments for testing pharmaceuticals, biological samples, electronic components, and industrial materials.

Construction & Design:

Built on a rigid stainless steel frame using high-grade SS 304 or 316
Double-walled chamber with high-density PUF insulation
Powder-coated GI sheet exterior; stainless steel 304 interior
Solid insulated outer door with lock & key; inner glass door in steel frame
Includes 2 to 5 height-adjustable stainless steel wire mesh trays

Temperature & Humidity Control:

Temperature range: 5°C to 60°C (Accuracy: ±1°C)
Humidity range: 40% to 95% RH (Accuracy: ±3% RH)
Microprocessor PID controller with SV & PV display and alarm system
Compliance with ICH guidelines for stability storage conditions

Refrigeration & Heating:

CFC-free hermetically sealed compressor for efficient cooling
Stainless steel tubular air heaters for controlled heating
Air circulation through axial fan/blower ensures uniform environment

Control System:

Self-programmed PID controllers
Advanced PLC-based HMI with color touchscreen, error display, data logging, and USB/RS485 data transfer
Optional 21 CFR Part 11 compliant software

Humidity System:

Stainless steel water tank with automatic refilling
ISI-marked immersion heater with low-water safety device

Illumination:

Interior LED/fluorescent lighting with optional cyclic timer control

Safety Features:

Over-temperature and over-current protection
Low and high-temperature limits
Time delay mechanism for compressor protection

Optional Features:

Stainless steel exterior (GMP compliant)
UV light, storage racks, validation ports
Caster wheels with brakes
IQ, OQ, PQ documentation
A high-precision humidity chamber designed for reliable environmental testing and stability studies.
